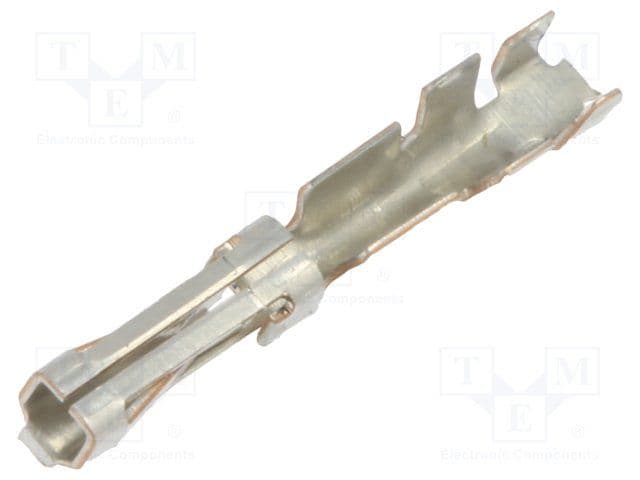

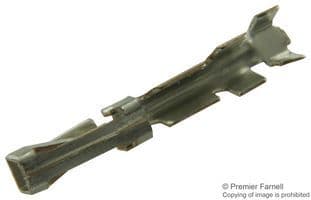

Female signal contact for AMPMODU MOD II series, featuring a tin-plated bronze construction. This straight, unshielded crimp termination contact supports discrete wire gauges from 22AWG to 26AWG. It operates within a temperature range of -65°C to 105°C with a maximum current rating of 3A. The contact measures 12.65mm in length, 1.9mm in height, and 2.2mm in depth, with an insulation diameter of 1.55mm. Packaged in strips of 20,000 units, this component is RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 280708-2 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Signal
Depth
2.2mm
ELV
Compliant
Gender
Female
Height
1.9mm
Insulation Diameter
1.55mm
Lead Free
Lead Free
Length
12.65mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Cable
Orientation
Straight
Package Quantity
20000

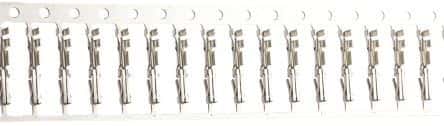

Packaging
Strip
Plating Thickness
0.8um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPMODU MOD II
Shielding
Unshielded
Termination
Crimp
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
