Female receptacle terminal for 7-10mm² wire gauge, featuring brass body with tin plating and tin-plated contacts. This straight, non-insulated component offers a 9.53mm mating tab width and 0.047 inch tab thickness, with a 0.375 inch tab width. Rated UL94 V-2 flammability, it operates between -30°C and 105°C and includes insulated wire support. Packaged in tape and reel, this RoHS compliant terminal is designed for free-hanging mounting.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 280755-2 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Contact Plating | Tin |
| Depth | 11.1mm |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 7mm |
| Length | 1.14inch |
| Mating Tab Width | 9.53mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Tab Thickness | 0.047inch |
| Tab Width | 0.375inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 7AWG |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 280755-2 Datasheet
Download the complete datasheet for TE Connectivity 280755-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

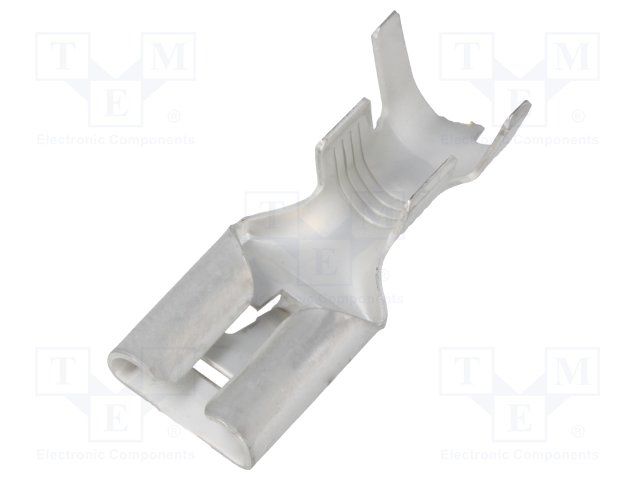

Product Images
