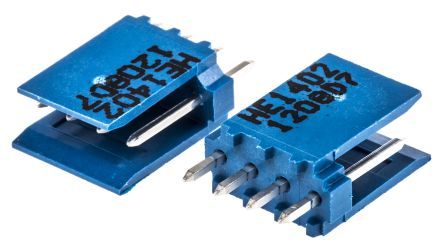

This straight male pin header features a 2.54mm pitch and 4 positions, designed for through-hole mounting. It offers a 3A current rating and 500V DC rated voltage, with tin-plated bronze contacts and a thermoplastic insulation material. The blue housing and insulation are UL94 V-0 rated for flammability, operating between -55°C and 105°C.
Voltage Rating500V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281695-4 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Blue
Contact Current Rating
3A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.75mm
Contact Plating
Tin
Contact Post Length
2.9mm
Contact Protection
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5.08mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
Housing Color
Blue
Insulation Color
Blue
Insulation Material
Thermoplastic
Keyed
No
Lead Free
Lead Free
Lead Length
2.9mm
Lead Pitch
2.54mm
Length
10.16mm
Material
Glass, Polyester
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Mating Cycles
30
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
4
Number of Poles
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Bag
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
HE13/HE14
Shrouded End Dimension
1.27mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
DC Rated Voltage
500V
Working Voltage
500V
Compliance
RoHS
Compliant
