Male, straight, signal contact with brass/CuSn contact material and tin plating. Features a 1.5mm mating tab width and 800um tab thickness. Rated for 14A current and 600V AC / 24V DC voltage, operating between -40°C and 125°C. Designed for through-hole and cable mounting with crimp termination, accommodating wire gauges from 15AWG to 18AWG. This sealable component has a 4.2mm pitch and is RoHS compliant.
Current Rating14A
MountingThrough Hole, Cable
Quick Jump:
Technical Specifications
TE Connectivity 282109-1 technical specifications.
General
Contact Material
Brass, CuSn
Contact Plating
Tin
Contact Type
Signal
Current Rating
14A
Depth
5.2mm
ELV
Compliant
Gender
Male
Height
4.7mm
Housing Color
Natural
Insulation Diameter
0.13inch
Lead Free
Not Applicable
Length
32.2mm
Mating Tab Width
1.5mm
Max Current Rating
14A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole, Cable
Number of Contacts
10
Number of Rows
2
Orientation
Straight
Package Quantity
4000
Packaging
Tape and Reel
Pitch
4.2mm
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
Superseal
Shielding
Unshielded
Tab Thickness
800um
Termination
Crimp
DC Rated Voltage
24V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
15AWG
Wire/Cable Gauge
15AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282109-1 Datasheet
Download the complete datasheet for TE Connectivity 282109-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

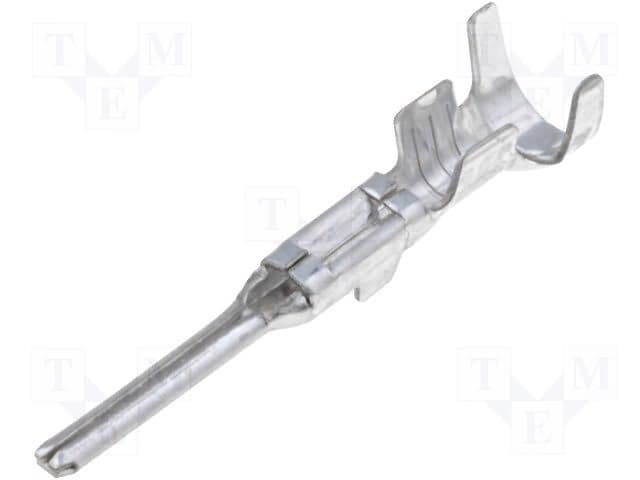

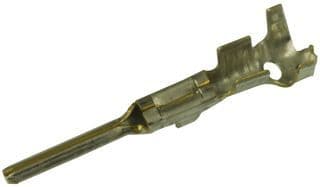

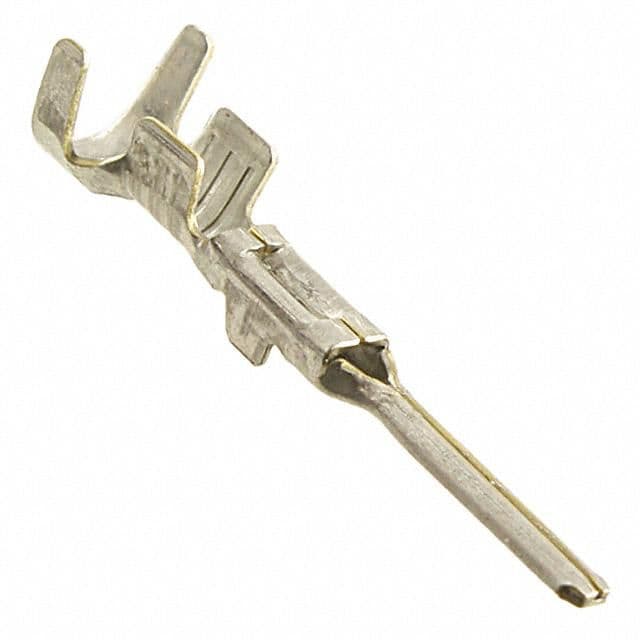

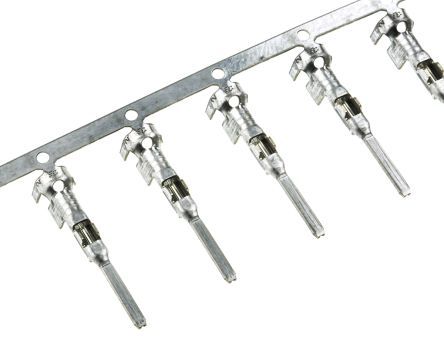

Product Images
