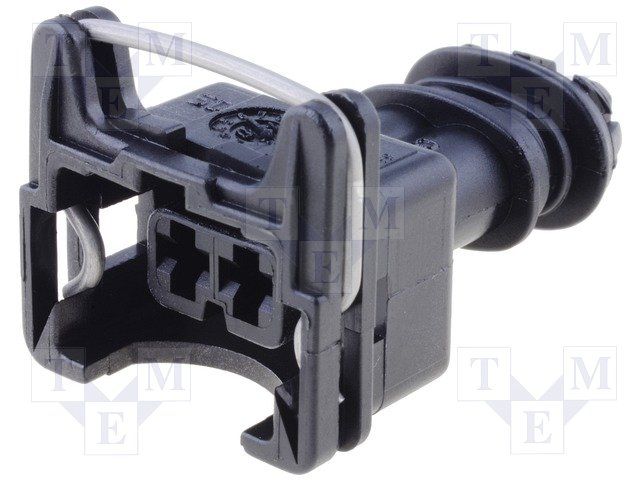

Two-position, single-row, straight, female socket wire-to-wire rectangular connector designed for signal applications. Features a 5mm pitch, 20A current rating, and a 24V DC voltage rating, operating between -30°C and 125°C. This black, sealable connector utilizes crimp termination and is free-hanging, with a mating tab width of 0.118 inches.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 282189-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 20A |
| Depth | 37.5mm |
| Gender | Female |
| Height | 1.476inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Length | 0.937inch |
| Mating Tab Width | 0.118inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Free Hanging |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 600 |
| Packaging | Bag |
| Pitch | 5mm |
| Polarized | Yes |
| Primary Type | Rectangular |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Junior Power Timer |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 22mm |
| RoHS | Compliant |
