2-position, right-angle, cable-mount terminal block with 5.08mm pitch. Features screwless termination, bronze contacts with tin plating, and a 15A current rating. Rated for 300V AC, operating from -40°C to 110°C. Constructed from green Nylon, it offers side stackability and a UL94 V-0 flammability rating.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 282807-2 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
18.4mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Green
Interlock
Yes (With)
Length
10.16mm
Material
Nylon
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Free Hanging, Cable
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Right Angle
Package Quantity
300
Packaging
Box
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
18.4mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282807-2 Datasheet
Download the complete datasheet for TE Connectivity 282807-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

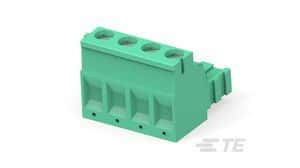

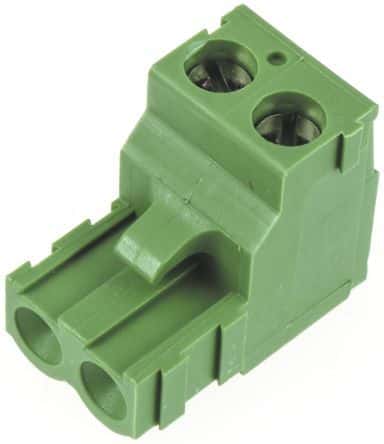

Product Images
