4-position, 1-row, straight, through-hole mount terminal block with a 2.54mm pitch. Features brass contacts with tin plating, rated for 10A and 150V AC. Housing is green, UL94 V-0 flammability rated, and operates from -40°C to 105°C. This screwless terminal block is side stackable and RoHS compliant.
Voltage150V
Current10A
Voltage Rating150V
Current Rating10A
Quick Jump:
Technical Specifications
TE Connectivity 282834-4 technical specifications.
General
Approvals
UL
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
10A
Current Rating
10A
Depth
6.5mm
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Length
10.62mm
Max Current Rating
10A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
150V
Max Voltage Rating (AC)
150V
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Operating Supply Voltage
150V
Orientation
Straight
Package Quantity
150
Packaging
Bulk
Pitch
2.54mm
Plating
Brass, Steel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.4mm
Termination
Solder
Voltage
150V
Voltage Rating
150V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282834-4 Datasheet
Download the complete datasheet for TE Connectivity 282834-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

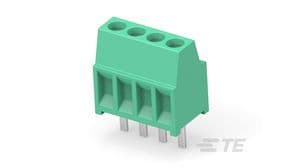

Product Images
