TE CONNECTIVITY

282834-8

Datasheet

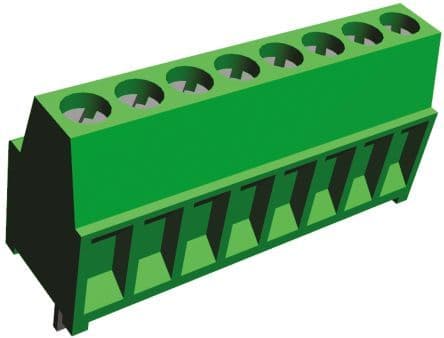

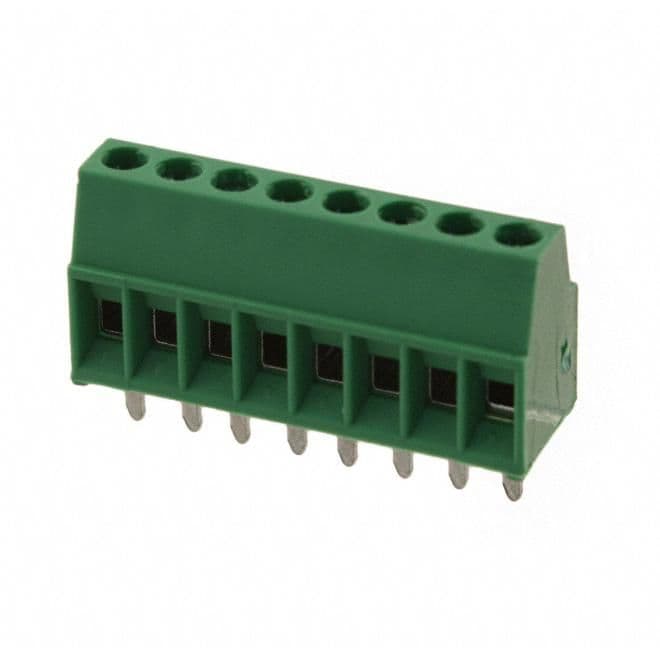

8 Pos PCB Terminal Block, 10A, 150V, 2.54mm Pitch, Green

TE Connectivity

282834-8

Name: 282834-8 TE Connectivity
Brand: TE Connectivity
SKU: 282834-8

8 Pos PCB Terminal Block, 10A, 150V, 2.54mm Pitch, Green

8-position, 1-row, screwless terminal block for wire-to-board applications. Features brass contacts with tin plating, a 2.54mm pitch, and a 10A current rating. This straight, female connector mounts via through-hole on PCBs and supports wire gauges from 30AWG to 16AWG. Constructed from UL94 V-0 rated green nylon housing, it operates between -40°C and 105°C with a 150V AC voltage rating.

Voltage150V

Current10A

Voltage Rating150V

Current Rating10A

Quick Jump:

Technical Specifications

TE Connectivity 282834-8 technical specifications.

General

Approvals	UL
Closed End	No (Without)
Color	Green
Connector System	Wire-to-Board
Contact Material	Brass
Contact Plating	Tin
Current	10A
Current Rating	10A
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Green
Interlock	No (Without)
Lead Free	Lead Free
Material	Nylon
Max Current Rating	10A
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	150V
Mount	Through Hole, PCB
Number of Circuits	8
Number of Contacts	8
Number of Levels	1
Number of Poles	8
Number of Positions	8
Number of Positions Per Level	8
Number of Rows	1
Operating Supply Voltage	150V
Orientation	Straight
Package Quantity	100
Packaging	Carton
Pitch	2.54mm
Plating	Brass, Steel
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Screw Flange	No (Without)
Screwless Terminal Block	Yes (With)
Series	Buchanan
Side Stackable	Yes (With)
Tail Length	3.4mm
Termination	Screw
Voltage	150V
Voltage Rating	150V
Voltage Rating (AC)	150V
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	30AWG
Wire/Cable Gauge	30AWG
