Two-position, straight, through-hole mount terminal block with 5mm pitch. Features brass contacts with tin plating, rated for 13.5A and 300V AC. Housing is green, UL94 V-0 flammability rated, and side-stackable. Includes interlock functionality.
Voltage300V
Current13.5A
Voltage Rating300V
Current Rating13.5A
Quick Jump:
Technical Specifications
TE Connectivity 282836-2 technical specifications.
General
Approvals
UL
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
13.5A
Current Rating
13.5A
Depth
8.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Lead Free
Lead Free
Length
10.6mm
Max Current Rating
13.5A
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight
Package Quantity
300
Packaging
Tray
Pitch
5mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
10mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282836-2 Datasheet
Download the complete datasheet for TE Connectivity 282836-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

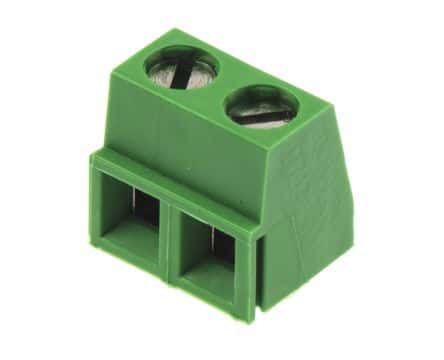

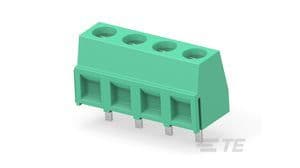

Product Images
