PCB mount terminal block with 6 positions and 6 circuits, featuring a 5.08mm pitch and straight orientation. Rated for 13.5A and 250V AC, this green, nylon housing component utilizes brass contacts with tin plating and supports through-hole mounting. It includes interlock and side stackable features, with a tail length of 3.5mm and a termination method of screw. The component is UL approved and RoHS compliant, with a flammability rating of UL94 V-0.
Voltage300V
Current13.5A
Voltage Rating250V
Current Rating13.5A
Quick Jump:
Technical Specifications
TE Connectivity 282837-6 technical specifications.
General
Approvals
UL
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
13.5A
Current Rating
13.5A
Depth
8.2mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
Yes (With)
Length
31.08mm
Material
Nylon
Max Current Rating
13.5A
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Poles
6
Number of Positions
6
Number of Positions Per Level
6
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Carton
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Screw
Voltage
300V
Voltage Rating
250V
Width
8.2mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282837-6 Datasheet
Download the complete datasheet for TE Connectivity 282837-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

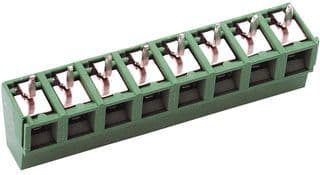

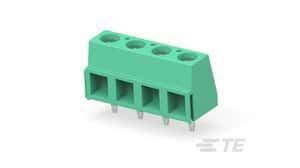

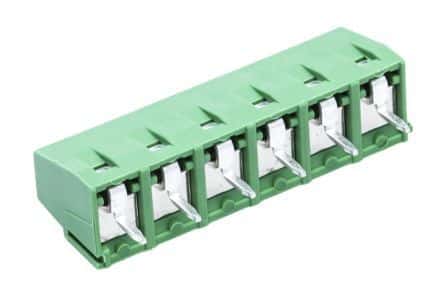

Product Images
