PCB Mount Terminal Block, 2-position, 1-row, straight orientation, 5.08mm pitch. Features brass contacts with tin plating, a green nylon housing, and a 17.5A current rating at 300V AC. This screwless terminal block offers through-hole mounting and a maximum operating temperature of 105°C. It is RoHS compliant and UL94 V-0 flammability rated.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 282841-2 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
17.5A
Current Rating
17.5A
Depth
9mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
Yes (With)
Lead Free
Lead Free
Length
10.16mm
Material
Nylon
Max Current Rating
17.5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight
Package Quantity
300
Packaging
Carton
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
9mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282841-2 Datasheet
Download the complete datasheet for TE Connectivity 282841-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

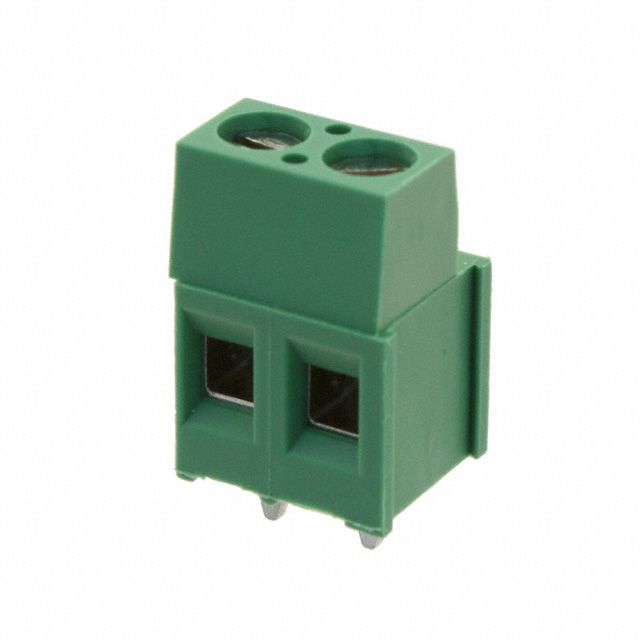

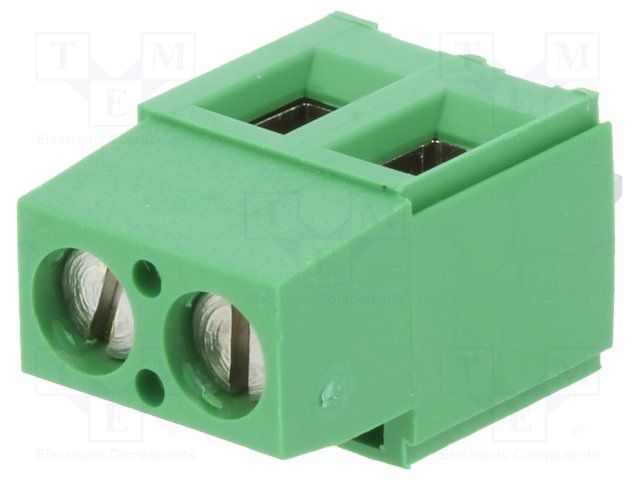

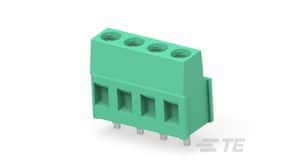

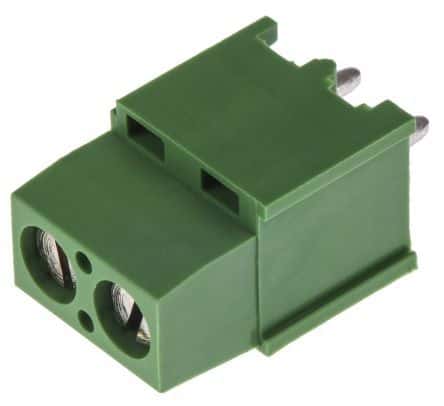

Product Images
