3-position, 1-row, straight, through-hole terminal block with 5.08mm pitch. Features brass contacts with tin plating, rated for 24A and 250V AC. Housing is green polyamide with UL94 V-0 flammability rating. Includes interlock and side stackable capabilities. Termination is solder.
Voltage300V
Current24A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 282857-3 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
24A
Depth
10mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Lead Free
Lead Free
Length
15.24mm
Material
Polyamide
Max Current Rating
24A
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Poles
3
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Straight
Package Quantity
200
Packaging
Carton
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282857-3 Datasheet
Download the complete datasheet for TE Connectivity 282857-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

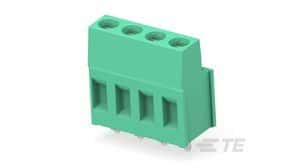

Product Images
