Six-position, right-angle plug terminal block with a 3.5mm pitch. Features bronze contacts with tin plating, rated for 11A and 300V AC. Housing is green, constructed from UL94 V-0 flammability rated material, and offers side stackability. Designed for through-hole mounting with solder termination for 30AWG wire. Operating temperature range is -40°C to 105°C.
Voltage300V
Current11A
Voltage Rating300V
Current Rating11A
Quick Jump:
Technical Specifications
TE Connectivity 284506-6 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
11A
Current Rating
11A
Depth
15.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
21mm
Max Current Rating
11A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Poles
6
Number of Positions
6
Number of Positions Per Level
6
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Solder
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 284506-6 Datasheet
Download the complete datasheet for TE Connectivity 284506-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

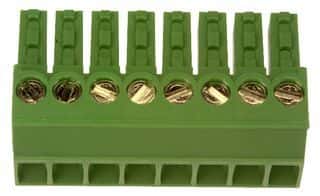

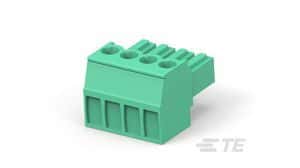

Product Images
