TE Connectivity
284506-8

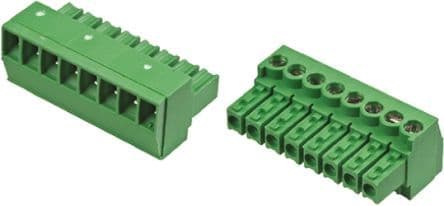

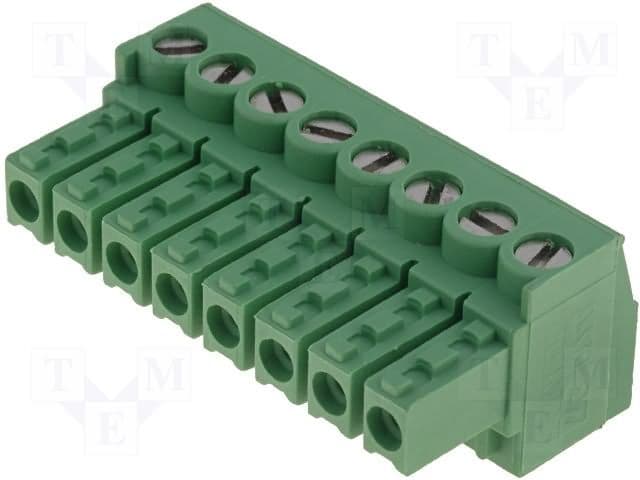

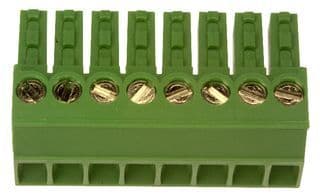

8 Pos Terminal Block, 11A, 300V, Green, Bronze/Tin, Right Angle, Through Hole
8-position, right-angle plug terminal block with a 3.5mm pitch. Features bronze contacts with tin plating, rated for 11A and 300V AC. Constructed from green nylon housing, this through-hole mount component offers side stackability and screw termination. Operating temperature range is -40°C to 110°C, with UL94 V-0 flammability rating.
Voltage300V
Current11A
Voltage Rating300V
Current Rating11A
Quick Jump:
Technical Specifications
TE Connectivity 284506-8 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
11A
Current Rating
11A
Depth
15.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Green
Interlock
No (Without)
Lead Free
Not Applicable
Length
28mm
Material
Nylon
Max Current Rating
11A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Width
11.1mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
