2-position, 1-row shrouded header for wire-to-board applications. Features a 3.81mm pitch and straight, through-hole mounting with solder termination. Constructed with a green nylon housing and bronze contacts with tin plating, rated for 11A current and 300V AC voltage. Operating temperature range is -40°C to 110°C, with UL94 V-0 flammability rating.
Voltage300V
Current11A
Voltage Rating300V
Current Rating11A
Quick Jump:
Technical Specifications
TE Connectivity 284517-2 technical specifications.
General
| Closed End | Yes (With) |
| Color | Green |
| Connector System | Wire-to-Board |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current | 11A |
| Current Rating | 11A |
| Depth | 7.25mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Green |
| Interlock | No (Without) |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Material | Nylon |
| Max Current Rating | 11A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Bulk |
| Pitch | 0.1499inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Shrouded | Yes (With) |
| Side Stackable | No (Without) |
| Tail Length | 3.4mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| Width | 7.25mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 284517-2 Datasheet
Download the complete datasheet for TE Connectivity 284517-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

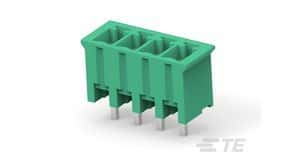

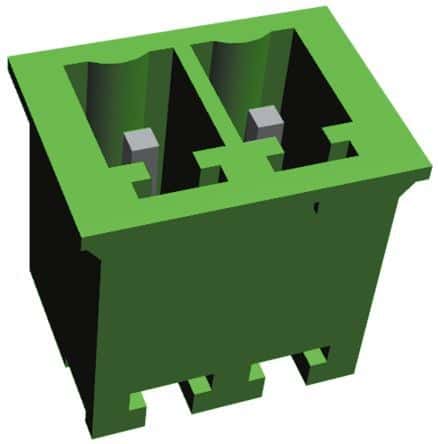

Product Images
