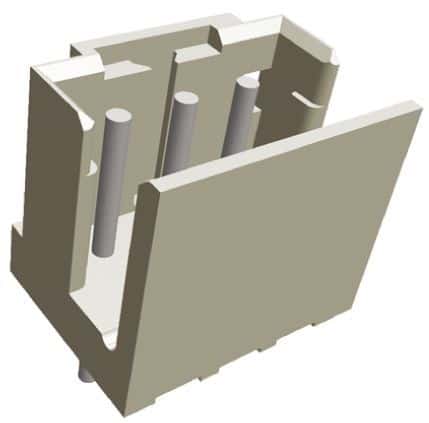

This 3-position, 1-row male pin header features a 2mm pitch and straight, through-hole mounting for wire-to-board applications. It offers a 4A current rating and a 125V voltage rating, with tin-plated brass contacts for reliable mating. The natural colored nylon housing provides UL94 V-0 flammability resistance and operates within a -40°C to 105°C temperature range. This component is RoHS compliant and designed for discrete wire termination.
Voltage Rating125V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 292132-3 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Connector System
Wire-to-Board
Contact Current Rating
4A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
4.2mm
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Style
Pin
Contact Type
Male Pin
Current Rating
4A
Depth
5.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.267inch
Housing Color
Natural
Insulation Color
Natural
Insulation Material
Nylon
Length
7.8mm
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Operating Supply Voltage
125V
Orientation
Straight
Package Quantity
1000
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.8mm
Pitch
2mm
Plating
Tin
Plating Thickness
1um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMP CT
Shape
Rectangular
Strain Relief
No (Without)
Tail Length
3.2mm
Termination
Solder
Voltage Rating
125V
Voltage Rating (AC)
125V
Width
5.8mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
