This 2-position male pin header is designed for wire-to-board applications, featuring a 2mm pitch and straight, through-hole mounting orientation. Constructed with brass contacts and a tin plating for reliable conductivity, it offers a 4A current rating and a maximum operating temperature of 105°C. The natural colored nylon housing ensures durability and compliance with UL94 V-0 flammability standards. This component is RoHS compliant and suitable for PCB thicknesses up to 0.8mm.
Voltage Rating125V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 292161-2 technical specifications.
General
Approvals
UL
Backwall/Post Interruptions
No (Without)
Body Plating
Tin
Color
Natural
Connector System
Wire-to-Board
Contact Current Rating
4A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.177inch
Contact Plating
Tin
Contact Retention
Yes (With)
Contact Shape
Round
Contact Style
Straight
Contact Type
Male Pin
Current Rating
4A
Depth
3.6mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.267inch
Housing Color
Natural
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
2mm
Length
5.8mm
Material
Nylon
Mating Alignment
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Operating Supply Voltage
125V
Orientation
Straight
Package Quantity
1000
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.8mm
Pitch
2mm
Plating
Tin
Plating Thickness
2um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CT
Shape
Rectangular
Strain Relief
No (Without)
Tail Length
3.2mm
Termination
Solder
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
3.6mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 292161-2 Datasheet
Download the complete datasheet for TE Connectivity 292161-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

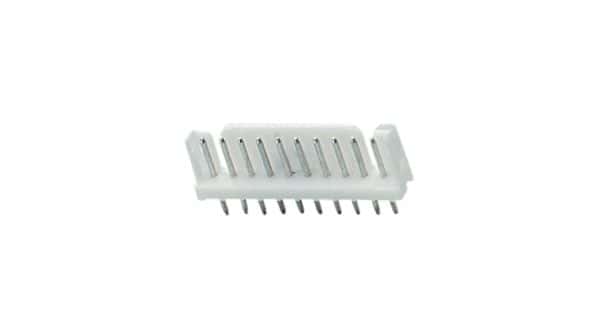

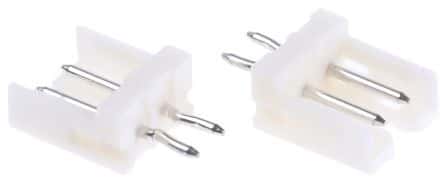

Product Images
