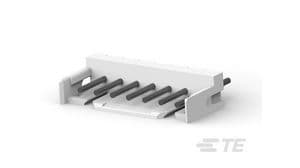

292161-7

7 Pos 2mm Header HDR, 2A, 125V, Straight, Thru-Hole, Tin

7-position shrouded header for wire-to-board applications. Features 2mm pitch, straight male pin contacts with brass material and tin plating. Rated for 2A current and 125V AC/DC, with a maximum operating temperature of 105°C. Through-hole mounting with vertical PCB orientation and solder termination. UL94 V-0 flammability rating and RoHS compliant.

Voltage Rating125V

Current Rating2A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 292161-7 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	4A
Contact Material	Brass
Contact Mating Length	0.177inch
Contact Plating	Tin
Contact Retention	Yes (With)
Contact Shape	Round
Contact Style	Straight
Contact Type	Male Pin
Current Rating	2A
Depth	3.6mm
Flammability Rating	UL94 V-0
Height	0.267inch
Housing Color	Natural
Length	15.8mm
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	125.125kV
Mount	Through Hole
Number of Contacts	7
Number of Positions	7
Number of Rows	1
Orientation	Straight
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.8mm
Pitch	2mm
Plating Thickness	2um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMP CT
Shape	Rectangular
Strain Relief	No (Without)
Tail Length	3.2mm
Termination	Solder
Voltage Rating	125V
Width	3.6mm
Wire/Cable Gauge	22AWG
Wire/Cable Type	Discrete
