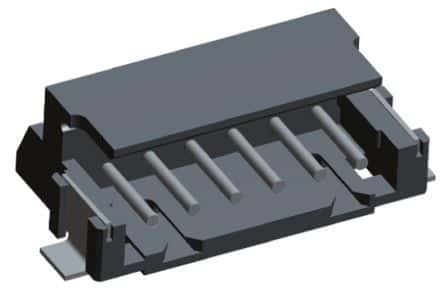

This 6-position, single-row male pin header is designed for wire-to-board applications, featuring a 2mm pitch and right-angle surface mount termination. It boasts a 4A contact current rating and a 2A overall current rating, with a tin-plated brass contact material and a 2µm plating thickness. The nylon housing is black, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. This component is RoHS compliant and CSA approved, packaged in tape and reel.
Voltage Rating125V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 292173-6 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
Yes (With)
Connector System
Wire-to-Board
Contact Current Rating
4A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
4.2mm
Contact Plating
Tin
Contact Retention
Yes (With)
Contact Shape
Round
Contact Type
Male Pin
Current Rating
2A
Depth
7.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.228inch
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
13.8mm
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Surface Mount
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Right Angle
Package Quantity
500
Packaging
Tape and Reel
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.8mm
Pitch
2mm
Plating Thickness
2um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMP CT
Shape
Rectangular
Strain Relief
No (Without)
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
Width
9mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
