3-position shrouded header, right-angle surface mount connector with a 1.5mm pitch. Features male pin contacts made of brass with tin plating, rated for 2A current and 50V AC/DC. Constructed with a natural colored nylon housing, it offers mating alignment and retention, and is UL recognized with a UL94 V-0 flammability rating. Operating temperature range is -22°C to 221°C.
Voltage Rating50V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 292228-3 technical specifications.
General
Approvals
UL
Backwall/Post Interruptions
No (Without)
Connector System
Wire-to-Board
Contact Current Rating
2A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
2.4mm
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
2A
Depth
9.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
7.7mm
Housing Color
Natural
Insulation Color
Beige
Insulation Diameter
0.041inch
Insulation Material
Nylon
Length
0.354inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
5.05kV
Mount
Surface Mount
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Right Angle
Package Quantity
700
Packaging
Tape and Reel
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.031inch
Pitch
1.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Mini CT
Shape
Rectangular
Termination
SMD/SMT
Voltage Rating
50V
Voltage Rating (AC)
50V
Width
0.192inch
Wire/Cable Gauge
24AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 292228-3 Datasheet
Download the complete datasheet for TE Connectivity 292228-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

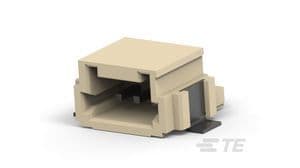

Product Images
