6 Position, 2mm pitch wire-to-board header with a right-angle, side-entry, through-hole mounting orientation. Features male pin contacts made of brass with tin plating, rated for 2A current and 125V AC/DC. The natural colored nylon housing offers a compact design with dimensions of 13.8mm length, 8.8mm height, and 8.8mm depth. This component is UL94 V-0 flammability rated, RoHS compliant, and operates within a temperature range of -40°C to 105°C.
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 292253-6 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Body Plating
Tin
Color
Natural
Connector System
Wire-to-Board
Contact Current Rating
4A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.177inch
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Round
Contact Style
Pin
Contact Type
Male Pin
Current Rating
2A
Depth
8.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
8.8mm
Housing Color
Natural
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
2mm
Length
13.8mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Operating Supply Voltage
125V
Orientation
Right Angle
Package Quantity
500
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.8mm
Pitch
2mm
Plating
Tin
Plating Thickness
1um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CT
Shape
Rectangular
Tail Length
3.2mm
Termination
Solder
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
0.157inch
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 292253-6 Datasheet
Download the complete datasheet for TE Connectivity 292253-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

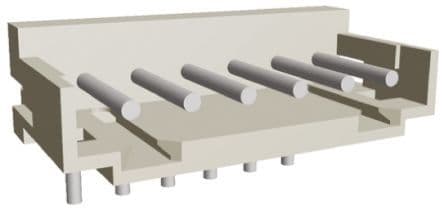

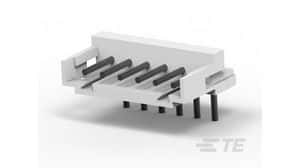

Product Images
