Right-angle, 25-position female D-subminiature connector with a metal shell and black housing. Features gold and tin plated bronze signal contacts with a 3.2mm post length, rated for 5A and 125V. Designed for through-hole PCB mounting with a 2.77mm pitch and includes mating alignment and locking features. Operates within a -55°C to 105°C temperature range and is RoHS compliant.
PackageMetal
Voltage Rating125V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-106507-2 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
3.2mm
Contact Type
Signal
Current Rating
5A
Depth
21.3mm
Dielectric Material
Glass
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Length
53.1mm
Material
Steel
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
30
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.77mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE® HD-20
Shell Material
Steel
Shell Size
3
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-106507-2 Datasheet
Download the complete datasheet for TE Connectivity 3-106507-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

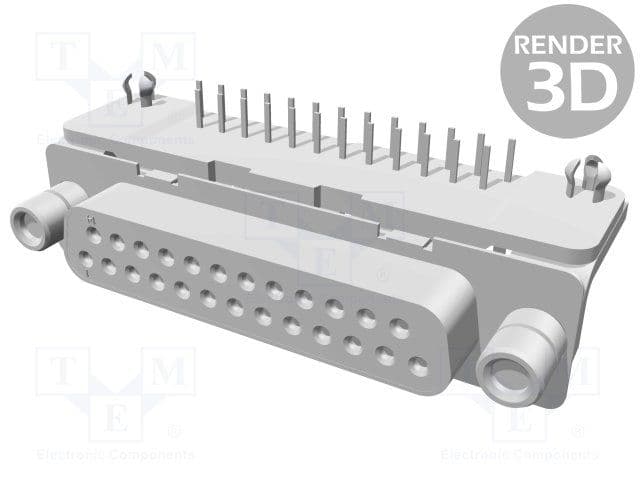

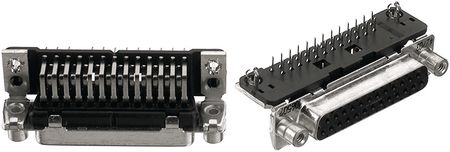

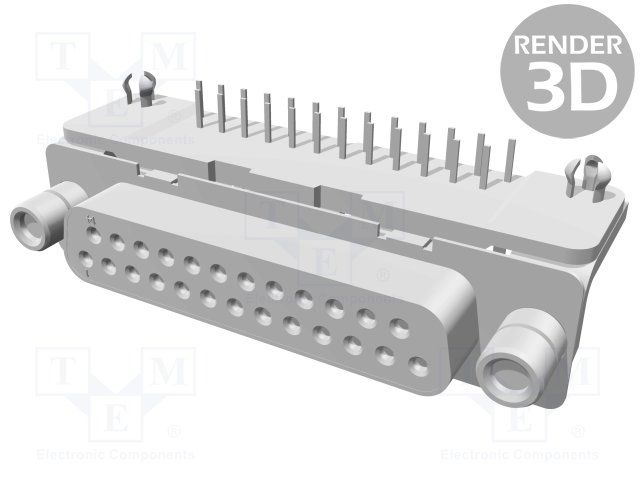

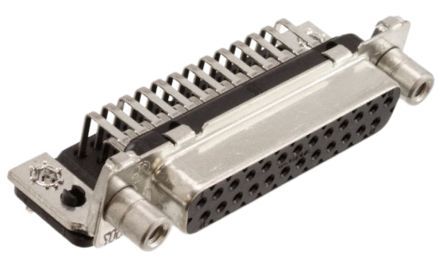

Product Images
