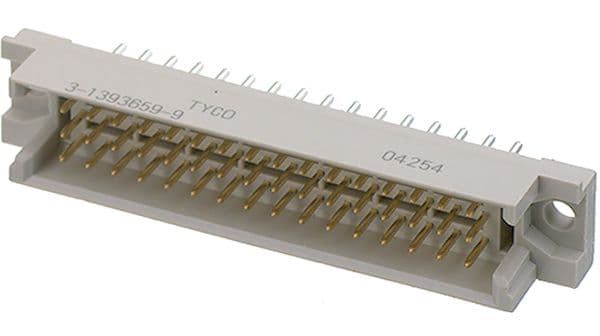

48-contact male straight two-part Eurocard connector with a 2.54mm pitch. Features copper alloy contacts with gold plating, a 45mm contact post length, and a 2A current rating. Operates within a -55°C to 125°C temperature range and supports up to 250V AC. Through-hole mount with a vertical PCB orientation, housed in grey PBT insulation with a UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-1393659-9 technical specifications.
General
| Contact Material | Copper Alloy, Nickel, Gold |
| Contact Plating | Gold |
| Contact Post Length | 4.5mm |
| Current Rating | 2A |
| Depth | 11.1mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 55mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Columns | 16 |
| Number of Contacts | 48 |
| Number of Positions | 48 |
| Number of Power Positions | 2 |
| Number of Rows | 3 |
| Number of Signal Positions | 48 |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Bulk |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Sealable | No (Without) |
| Series | Eurocard |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
