Rectangular connector, wire-to-device system, featuring 26 positions and 26 female socket contacts arranged in 4 rows with a 0.118-inch pitch. Constructed with black PBT body material, this straight, polarized, and sealable connector operates within a -40°C to 125°C temperature range and supports a maximum voltage rating of 250V AC / 250.25kV DC. Termination is via crimp, suitable for wire gauges from 16AWG to 20AWG. This free-hanging connector is RoHS and ELV compliant, with a UL94 V-2 flammability rating.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 3-1437290-8 technical specifications.
General
Body Material
PBT
Color
Black
Connector System
Wire-to-Device
Contact Type
Female Socket
Depth
32.15mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
34.55mm
Hybrid Connector
No
Lead Free
Not Applicable
Length
32.15mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Free Hanging
Number of Contacts
26
Number of Positions
26
Number of Rows
4
Orientation
Straight
Package Quantity
20
Packaging
Rail/Tube
Pitch
0.118inch
Polarized
Yes
RoHS Compliant
Yes
Row Spacing
0.118inch
Sealable
Yes (With)
Series
Superseal
Serviceable
Yes
Strain Relief
No (Without)
Termination
Crimp
Width
1.268inch
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-1437290-8 Datasheet
Download the complete datasheet for TE Connectivity 3-1437290-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

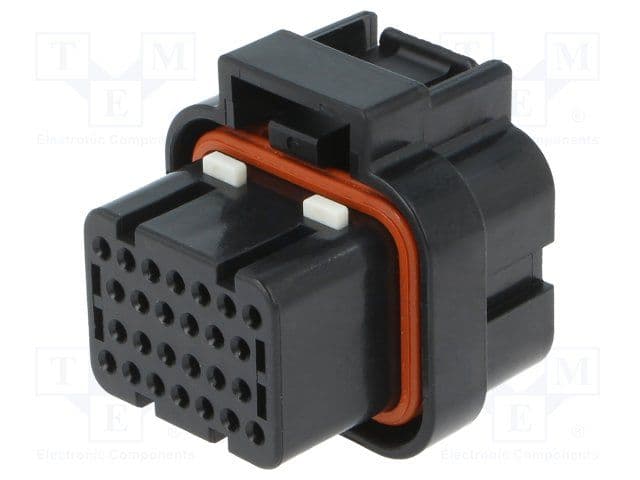

Product Images
