3-1734839-0

Datasheet

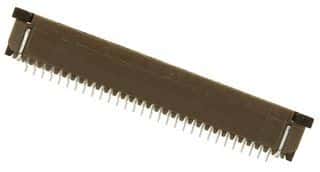

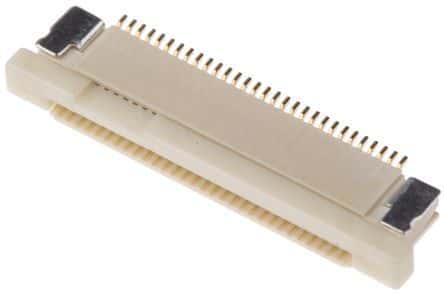

0.5mm Pitch FPC Connector, 30 Pos, Right Angle, Gold, SMT

TE Connectivity

3-1734839-0

Name: 3-1734839-0 TE Connectivity
Brand: TE Connectivity
SKU: 3-1734839-0

0.5mm Pitch FPC Connector, 30 Pos, Right Angle, Gold, SMT

0.5mm pitch flex-to-board connector, featuring 30 positions and 1 row. This right-angle, surface mount receptacle offers a 500mA contact current rating and a 250V voltage rating. Constructed with gold-plated bronze contacts and a thermoplastic actuator, it ensures reliable signal transmission. The connector boasts a compact 5.1mm width and 2.05mm height, with a beige actuator and natural housing. It is RoHS compliant and rated UL94 V-0 for flammability.

Voltage Rating250V

MountingSurface Mount

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 3-1734839-0 technical specifications.

General

Actuator Color	Beige
Actuator Material	Thermoplastic
Body Plating	Gold
Circuit Application	Signal
Color	Beige
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.05mm
Housing Color	Natural
Lead Free	Lead Free
Lead Pitch	0.5mm
Length	0.8043inch
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	30
Number of Positions	30
Number of Rows	1
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
Pin Diameter	0.2mm
Pitch	0.5mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250V
Width	5.1mm
Wire/Cable Type	Flat Flex
