This surface mount socket connector is designed for power applications, featuring a straight, cable-to-board configuration with a single position and contact. It offers a 5A contact current rating, utilizing copper contacts with gold plating for enhanced conductivity and durability. The component operates within a temperature range of -85°C to 257°C and is RoHS compliant. Termination is achieved via press-fit, suitable for discrete wire with a 23AWG gauge.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 3-5331272-5 technical specifications.
General
| Circuit Application | Power |
| Connector System | Cable-to-Board |
| Contact Current Rating | 5A |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 1.78mm |
| ELV | Compliant |
| Flange Diameter | 0.07inch |
| Inside Diameter | 640um |
| Lead Free | Lead Free |
| Length | 0.138inch |
| Max Operating Temperature | 257°C |
| Min Operating Temperature | -85°C |
| Mount | Surface Mount |
| Mounting Style | SOCKET |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Loose Piece |
| PCB Thickness | 3.18mm |
| Plating Thickness | 30um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | 2 |
| Socket Depth | 0.125inch |
| Termination | Press-Fit |
| Wire/Cable Gauge | 23AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3-5331272-5 Datasheet
Download the complete datasheet for TE Connectivity 3-5331272-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

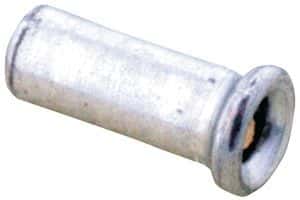

Product Images
