3-6318490-6

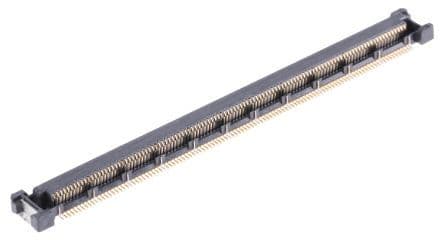

220 Pos 0.5mm Pitch Receptacle, Board-to-Board, Gold/Tin, 50V, SMT

220-position, 2-row receptacle for board-to-board applications. Features a 0.5mm pitch and 8mm mated stacking height. Contact current rating of 500mA, with gold and tin plating on copper alloy contacts. Surface mount termination with vertical PCB mounting orientation and retention. Housing is black thermoplastic with UL94 V-0 flammability rating.

Voltage Rating50V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 3-6318490-6 technical specifications.

General

Boss	Yes (With)
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Current Rating	500mA
Depth	6.2mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.157inch
Housing Color	Black
Insulation Material	Thermoplastic
Length	61.8mm
Mated Stacking Heights	8mm
Mating Alignment	Yes (With)
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	50V
Mount	Surface Mount
Number of Contacts	220
Number of Positions	220
Number of Rows	2
Operating Supply Voltage	50V
Orientation	Straight
Package Quantity	210
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	5.08mm
Pitch	0.5mm
Plating	Gold
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Free Height (FH)
Stack Height	8mm
Stackable	No
Termination	SMD/SMT
Voltage Rating	50V
