TE CONNECTIVITY

3-640442-6

Datasheet

6P Female Socket Receptacle, 2.54mm Pitch, 5A, 250V, IDC

TE Connectivity

3-640442-6

Name: 3-640442-6 TE Connectivity
Brand: TE Connectivity
SKU: 3-640442-6

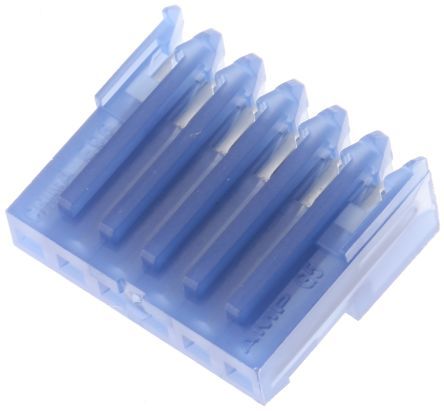

6P Female Socket Receptacle, 2.54mm Pitch, 5A, 250V, IDC

6-position, 1-row right-angle receptacle connector for wire-to-board applications. Features female socket contacts made of copper alloy with tin, matte plating and nickel underplate, rated for 5A and 250V AC. Designed for 26AWG discrete or ribbon wire with IDC termination and strain relief. Compliant with RoHS and UL94 V-2 flammability rating, operating between -67°C and 221°C.

Voltage Rating250V

Current Rating5A

MountingFree Hanging, Cable, Board

Quick Jump:

Technical Specifications

TE Connectivity 3-640442-6 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Color	Blue
Connector System	Wire-to-Board
Contact Current Rating	5A
Contact Gender	Female
Contact Material	Copper Alloy
Contact Plating	Tin, Matte
Contact Retention	Yes (With)
Contact Type	Female Socket
Current Rating	5A
Depth	6.99mm
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Receptacle
Height	6.99mm
Housing Color	White
Insulation Diameter	1.52mm
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	0.6inch
Mating Alignment	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable, Board
Number of Contacts	6
Number of Poles	6
Number of Positions	6
Number of Rows	1
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	2.54mm
Plating Thickness	5.08um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	MTA-100
Shrouded	No (Without)
Strain Relief	Yes (With)
Termination	IDC
Underplate Material	Nickel
Voltage Rating	250V
Voltage Rating (AC)	250V
Wire/Cable Gauge	26AWG
Wire/Cable Type	Discrete, Ribbon
