TE CONNECTIVITY

3-643813-5

Datasheet

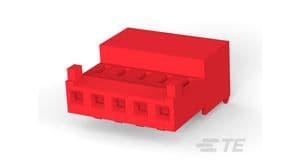

5 Pos 2.54mm Pitch Wire-to-Board Receptacle, 5A, Right Angle, Nylon

TE Connectivity

3-643813-5

Name: 3-643813-5 TE Connectivity
Brand: TE Connectivity
SKU: 3-643813-5

5 Pos 2.54mm Pitch Wire-to-Board Receptacle, 5A, Right Angle, Nylon

5-position, single-row wire-to-board receptacle connector with IDC termination. Features copper alloy female socket contacts with tin, matte plating over nickel underplate, rated for 5A and 250V AC. Nylon housing in white, with red polarization rib, and a 2.54mm pitch. Includes strain relief and mating retention, with a temperature range of -67°C to 221°C. Compliant with RoHS and UL94 V-2 flammability rating.

Voltage Rating250V

Current Rating5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 3-643813-5 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Body Material	Nylon
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	5A
Contact Gender	Female
Contact Material	Copper Alloy
Contact Plating	Tin, Matte
Contact Retention	Yes (With)
Contact Type	Female Socket
Current Rating	5A
Depth	6.99mm
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Receptacle
Height	6.99mm
Housing Color	White
Insulation Diameter	1.52mm
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	12.7mm
Material	Nylon
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	5
Number of Positions	5
Number of Rows	1
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	2.54mm
Plating Thickness	5.08um
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	MTA-100
Shrouded	No (Without)
Strain Relief	Yes (With)
Termination	IDC
Underplate Material	Nickel
Voltage Rating	250V
Voltage Rating (AC)	250V
Wire/Cable Gauge	22AWG
Wire/Cable Type	Discrete, Ribbon
