3-794620-8
8 Pos Rectangular Connector, Wire-to-Board, 5A, Gold, Right Angle, Through Hole
8-position, 2-row wire-to-board rectangular connector with a right-angle, through-hole mounting orientation. Features male pin contacts with gold plating and a 5A current rating, suitable for power applications. Constructed with a nylon housing and brass contacts, it operates within a temperature range of -40°C to 221°C and supports a 250V AC voltage rating. Compliant with RoHS, ELV, and VDE standards, this connector is designed for reliable PCB integration.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-794620-8 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
5A
Depth
11.92mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
16mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Power Positions
8
Number of Rows
2
Orientation
Right Angle
Package Quantity
234
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.118inch
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.118mm
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-794620-8 Datasheet
Download the complete datasheet for TE Connectivity 3-794620-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

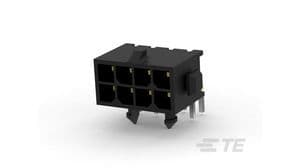

Product Images
