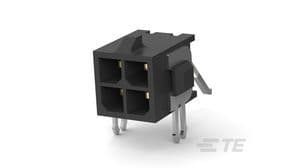

4-position, 2-row wire-to-board connector system with male pin contacts, rated for 5A and 250V AC. Features gold-plated brass contacts with tin plating, a black nylon housing, and right-angle surface mount termination. Designed for power applications with a 0.118-inch pitch and operating temperatures from -40°C to 221°C. Compliant with RoHS, ELV, CSA, and VDE standards, with UL94 V-0 flammability rating.
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 3-794626-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
5A
Depth
15.63mm
ELV
Compliant
Flammability Rating
UL94 V-0
Height
7.37mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
4mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Surface Mount
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Power Positions
4
Number of Rows
2
Orientation
Right Angle
Package Quantity
150
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.118inch
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.181mm
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
SMD/SMT
VDE Tested
Yes
Width
7.37mm
Compliance
RoHS
Compliant
