8-position, 2-row wire-to-board connector with male pin contacts, rated for 5A and 250V AC. Features brass male pin contacts with tin plating and a nylon housing in black. Designed for vertical through-hole PCB mounting with a 0.118-inch pitch. Includes mating alignment and retention, with a maximum operating temperature of 221°C. RoHS compliant and VDE tested.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-794630-8 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
5A
Depth
6.86mm
Flammability Rating
UL94 V-0
Gender
Male
Height
9.24mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
12.86mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Power Positions
8
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
234
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
0.118inch
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.118mm
Sealable
No (Without)
Series
Micro MATE-N-LOK
Termination
Solder
VDE Tested
Yes
Voltage Rating
250V
Width
8.67mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-794630-8 Datasheet
Download the complete datasheet for TE Connectivity 3-794630-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

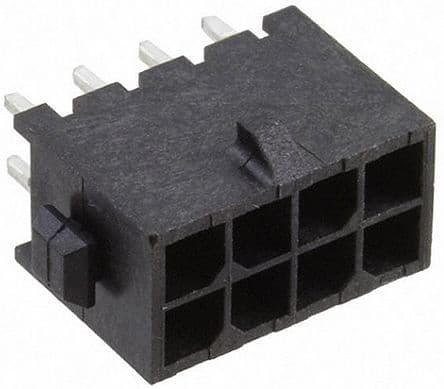

Product Images
