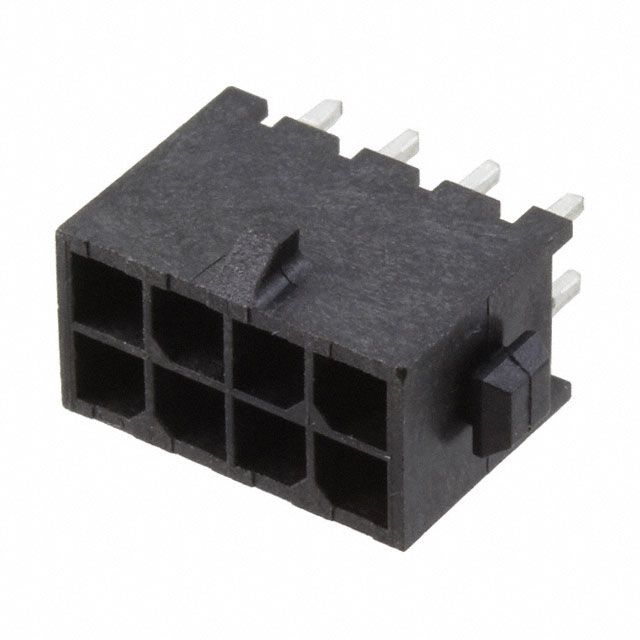

8-position, 2-row wire-to-board connector with male pin contacts. Features a 5A contact current rating and gold-plated brass contacts with gold/tin plating. Nylon housing in black, rated UL94 V-0, with a straight, vertical PCB mounting orientation. Through-hole termination, 0.118-inch pitch, and a maximum operating temperature of 221°C. CSA and VDE tested, RoHS and ELV compliant.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-794631-8 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
5A
Depth
8.7mm
ELV
Compliant
Flammability Rating
UL94 V-0
Height
8.7mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
16mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Power Positions
8
Number of Rows
2
Orientation
Straight
Package Quantity
234
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
0.118inch
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.118mm
Sealable
No (Without)
Series
Micro MATE-N-LOK
Termination
Solder
VDE Tested
Yes
Voltage Rating
250V
Width
9.2mm
Compliance
RoHS
Compliant
