6-position, 2-row wire-to-board connector with straight, vertical surface mount orientation. Features male pin contacts with gold plating over brass for 5A current rating and 250V voltage rating. Nylon housing in black, rated UL94 V-0, with a pitch of 0.118 inches. Operating temperature range of -40°C to 221°C, compliant with ELV and RoHS standards.
Voltage Rating250V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 3-794635-6 technical specifications.
General
| Approvals | CSA |
| Circuit Application | Power |
| Color | Black |
| Connector System | Wire-to-Board |
| Contact Current Rating | 5A |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Retention | No (Without) |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 9.24mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 9.86mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Power Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 175 |
| Packaging | Tray |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57mm |
| Pitch | 0.118inch |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.118mm |
| Sealable | No (Without) |
| Series | Micro MATE-N-LOK |
| Strain Relief | No (Without) |
| Termination | SMD/SMT |
| VDE Tested | Yes |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3-794635-6 Datasheet
Download the complete datasheet for TE Connectivity 3-794635-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

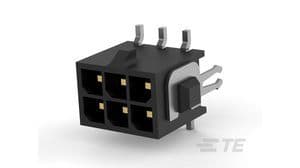

Product Images
