3-88190-4

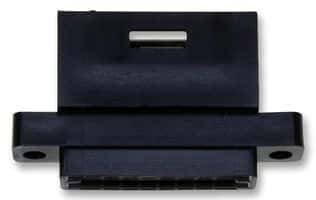

16 Pos 2.54mm ST Wire Housing, Male, 300V, UL94 V-0

Rectangular wire housing for panel mount applications, featuring 16 positions and a 2.54mm pitch. This straight, male connector system offers wire-to-board connectivity with a 300V voltage rating and a maximum operating temperature of 105°C. Constructed with UL94 V-0 flammability rating and black housing, it supports 22-24AWG wire gauges and includes mating alignment, locking, and retention features.

Voltage Rating300V

Quick Jump:

Technical Specifications

TE Connectivity 3-88190-4 technical specifications.

General

Color	Black
Connector System	Wire-to-Board
Depth	23.62mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Insulation Diameter	1.75mm
Lead Free	Lead Free
Length	82.8mm
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	300V
Number of Contacts	16
Number of Positions	16
Number of Rows	2
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Voltage Rating	300V
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	22AWG
Wire/Cable Type	Flat Flex
