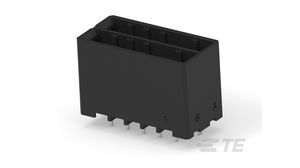

Wire-to-Board power connector with 10 positions and 2 rows, featuring a 5.08mm pitch. This male connector offers a 8A contact current rating and a 600V voltage rating, with tin-plated copper alloy contacts. It mounts via through-hole termination with solder tails and a vertical PCB mounting orientation. The connector boasts a glass-filled housing, UL94 V-0 flammability rating, and is RoHS and Halogen Free compliant.
Voltage Rating600V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-917657-5 technical specifications.
General
Approvals
UL
Connector System
Wire-to-Board
Contact Current Rating
8A
Contact Finish - Mating
TIN
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Rectangular
Contact Style
Straight
Contact Type
Tab
Depth
16.97mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Halogen Free
Halogen Free
Height
0.85inch
Housing Color
Black
Insulation Color
Black
Insulation Material
Glass
Length
1.35inch
Mated Stacking Heights
32.5mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
10
Number of Ports
1
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
14
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
0.2inch
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.3inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D-3200
Shielding
Unshielded
Shrouded
Yes (With)
Strain Relief
No (Without)
Tail Length
3.8mm
Termination
Solder
VDE Tested
No
Voltage Rating
600V
Width
0.668inch
Compliance
RoHS
Compliant
