Butt splice terminal for 16-22AWG wire, featuring a copper body with tin plating. This non-insulated, straight orientation terminal offers a 14.68mm length and 3.58mm diameter. Constructed with copper and silver contact material, also tin plated, it supports two wire entries and utilizes a crimp termination method. The component is RoHS compliant and supplied in loose piece packaging.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 31818 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Package/Case | Metal |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 3.58mm |
| Diameter | 3.58mm |
| Government Qualified | No |
| Inside Diameter | 1.55mm |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Length | 14.68mm |
| Material | Copper, Tin |
| Number of Wire Entries | 2 |
| Orientation | Straight |
| Outside Diameter | 0.141inch |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Termination | Crimp |
| Thickness | 0.79mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Diameter | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 31818 Datasheet
Download the complete datasheet for TE Connectivity 31818 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

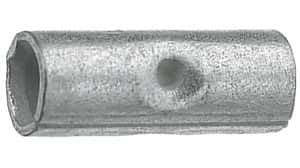

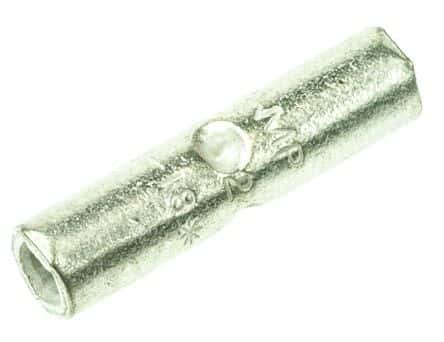

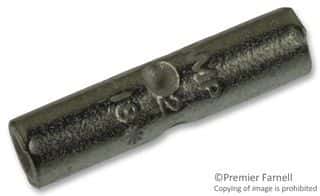

Product Images
