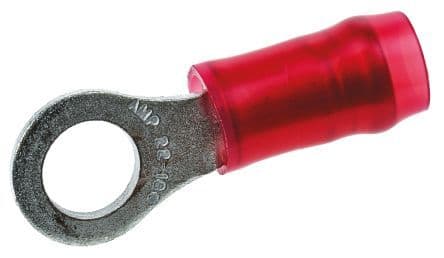

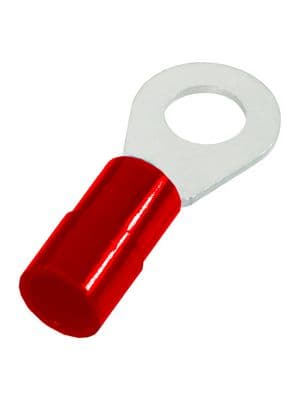

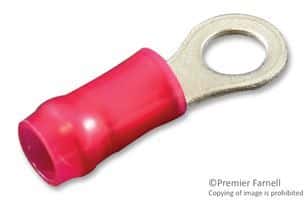

Female ring tongue terminal for 16-22AWG wire. Features copper body and contact material with tin plating. Insulated with red nylon for wire support, offering a maximum operating temperature of 105°C and a 300V AC voltage rating. Straight orientation, free-hanging mount, and a stud diameter of 4.34mm (M4). RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 31886 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper
Contact Plating
Tin
Depth
7.14mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.14inch
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.24mm
Material
Copper
Max Operating Temperature
105°C
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIDG
Stud Diameter
4.34mm
Stud Size
M4
Termination
Crimp
Thickness
0.79mm
Tongue Thickness
0.79mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
0.14inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 31886 Datasheet
Download the complete datasheet for TE Connectivity 31886 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
