Female, non-insulated terminal designed for crimp termination. Features a copper body with tin plating and copper contacts with silver plating, offering a 2.54um plating thickness. This free-hanging component supports wire gauges from 4AWG to 0AWG, with a stud diameter of 0.328 inches. Constructed from copper and plated with tin, it measures 64.44mm in length, 29.21mm in depth, and 2.59mm in thickness. Government qualified and RoHS compliant, this terminal is supplied in loose piece packaging.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 321271 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
Metal
Contact Material
Copper, Silver
Contact Plating
Tin
Depth
29.21mm
Gender
Female
Government Qualified
Yes
Heavy Duty
No
Insulated Wire Support
No
Insulation
Non-Insulated
Length
64.44mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Package Quantity
50
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Solistrand
Shrouded
No (Without)
Stud Diameter
0.328inch
Termination
Crimp
Thickness
2.59mm
Wire Gauge (Max)
0AWG
Wire Gauge (Min)
4AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 321271 Datasheet
Download the complete datasheet for TE Connectivity 321271 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

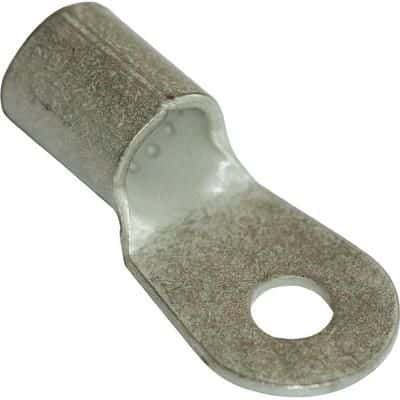

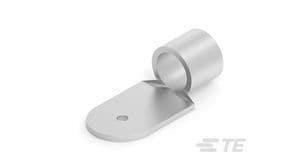

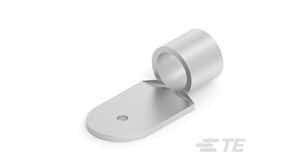

Product Images
