This non-insulated splice terminal is designed for 10-12 AWG wire, featuring a straight orientation and crimp termination. Constructed from copper with tin plating, it offers a 14.35mm length and 5.74mm diameter. The terminal has two wire entries and a 3.28mm inside diameter, with a 0.99mm thickness and 5.74mm width. It is RoHS compliant and packaged as loose pieces.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 32151 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Package/Case | Metal |
| Contact Material | Copper, Silver, Copper Alloy |
| Contact Plating | Tin |
| Depth | 5.74mm |
| Diameter | 5.74mm |
| Government Qualified | No |
| Heavy Duty | No |
| Inside Diameter | 3.28mm |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 14.35mm |
| Manufacturer Series | 32151 |
| Material | Copper, Tin |
| Number of Wire Entries | 2 |
| Orientation | Straight |
| Outside Diameter | 0.226inch |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Terminal Gender | Female |
| Termination | Crimp |
| Thickness | 0.99mm |
| Width | 5.74mm |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 32151 Datasheet
Download the complete datasheet for TE Connectivity 32151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

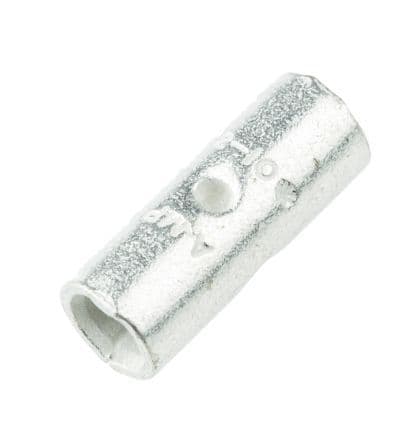

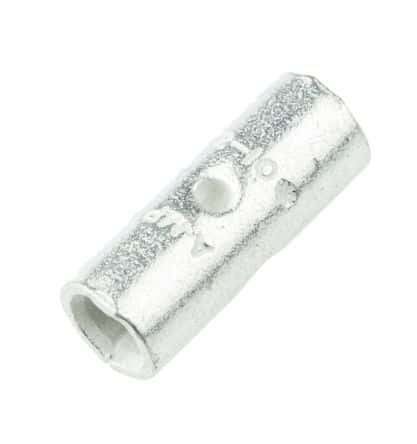

Product Images
