Non-insulated, loose piece ring tongue terminal for 2AWG wire. Features copper body and contact material with tin plating. Terminal length is 1.527 inches with a 0.328 inch stud diameter (M8 size). RoHS compliant and ELV compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 322870-1 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 15.87mm |
| ELV | Compliant |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 1.527inch |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Package Quantity | 50 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Stud Diameter | 0.328inch |
| Stud Size | M8 |
| Termination | Circular |
| Wire/Cable Gauge | 2AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 322870-1 Datasheet
Download the complete datasheet for TE Connectivity 322870-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

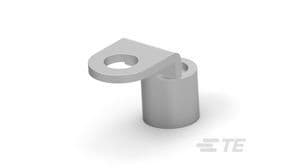

Product Images
