STRATO-THERM series female terminal, designed for crimp termination of 12-10 AWG wire. Features a nickel body and contact material with unplated finish. Operates up to 650°C with a straight orientation and stud mount for M4 stud diameter. Compliant with RoHS and ELV standards, this non-insulated terminal has a maximum wire/cable diameter of 3.3mm.
MountingStud
Quick Jump:
Technical Specifications
TE Connectivity 323745 technical specifications.
General
| Body Material | Nickel |
| Color | Orange, Silver |
| Contact Material | Nickel |
| Contact Plating | Unplated |
| Depth | 9.53mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Lead Free | Not Applicable |
| Length | 18.77mm |
| Material | Nickel |
| Max Operating Temperature | 650°C |
| Mount | Stud |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Unplated |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | STRATO-THERM |
| Shrouded | No (Without) |
| Stud Diameter | 4.34mm |
| Stud Size | M4 |
| Termination | Crimp |
| Thickness | 0.039inch |
| Tongue Thickness | 0.99mm |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Diameter | 3.3mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 323745 Datasheet
Download the complete datasheet for TE Connectivity 323745 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

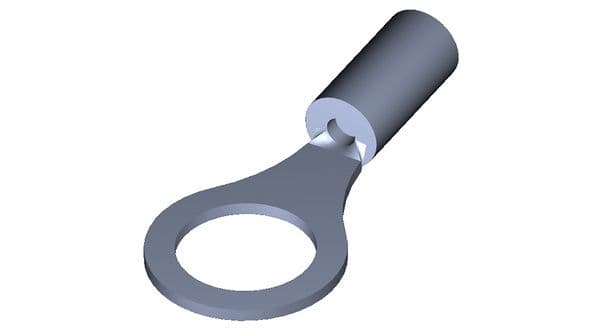

Product Images
