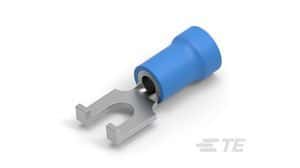

Crimp-style, female spade tongue terminal for 14-16 AWG wire. Features a flanged tongue with a 19.02mm length and 0.79mm tongue thickness. Constructed from copper with tin plating for excellent conductivity. Insulated with blue vinyl, offering a 600V AC voltage rating and 0.193-inch insulation diameter. RoHS and ELV compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 324165 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 7.47mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 0.193inch |
| Insulation Material | Vinyl |
| Lead Free | Lead Free |
| Length | 19.02mm |
| Material | Copper |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Shrouded | No (Without) |
| Stud Diameter | 3.68mm |
| Stud Size | M3.5 |
| Termination | Crimp |
| Thickness | 0.84mm |
| Tongue Thickness | 0.79mm |
| Voltage Rating (AC) | 600V |
| Width | 7.47mm |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 324165 Datasheet
Download the complete datasheet for TE Connectivity 324165 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
