Crimp terminal for 14-16 AWG wire, featuring a straight, free-hanging orientation. Constructed from copper with tin plating for both body and contact. Offers a maximum operating temperature of 170°C and a stud size of M4 with a diameter of 4.34mm. This non-insulated terminal has a tongue thickness of 790µm and a blue body color.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 324955 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 7.92mm |
| Finish | Tin |
| Government Qualified | No |
| Heavy Duty | No |
| Inside Diameter | 2.16mm |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 0.5902inch |
| Material | Copper |
| Max Operating Temperature | 170°C |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Stud Diameter | 4.34mm |
| Stud Size | M4 |
| Termination | Crimp |
| Tongue Thickness | 790um |
| Width | 7.92mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 324955 Datasheet
Download the complete datasheet for TE Connectivity 324955 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

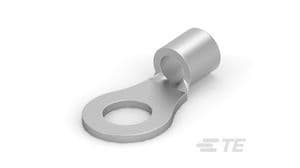

Product Images
