Female, insulated, straight-mount ring terminal for wire gauges 16-22 AWG. Features a copper body with tin plating and a nylon insulation in red. Contact material is copper with silver and tin plating. Rated for 300V, with a stud diameter of 3.68mm (M3.5) and a tongue thickness of 0.79mm. Dimensions include a length of 19.13mm, width of 7.54mm, and depth of 7.54mm. RoHS compliant.
Voltage Rating300V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 326861 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 7.54mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.14inch |
| Insulation Material | Nylon |
| Jacket Material | Nylon |
| Lead Free | Lead Free |
| Length | 19.13mm |
| Material | Copper |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | PIDG |
| Stud Diameter | 3.68mm |
| Stud Size | M3.5 |
| Terminal Material | Copper |
| Termination | Crimp |
| Tongue Thickness | 0.79mm |
| Voltage Rating | 300V |
| Width | 7.54mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Diameter | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 326861 Datasheet
Download the complete datasheet for TE Connectivity 326861 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

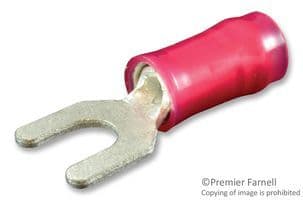

Product Images
