Ring tongue terminal for 14-16 AWG wire, featuring a copper contact with tin plating. This insulated terminal, with a blue vinyl insulation, offers a 600V AC voltage rating and a 22.12mm length. Designed for crimp termination, it supports insulated wire and has a stud diameter of 4.17mm (M4). The terminal is RoHS compliant and supplied in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 32959 technical specifications.
General
Color
Blue
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
0.145inch
Insulation Material
Vinyl
Lead Free
Lead Free
Length
22.12mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
4.17mm
Stud Size
M4
Termination
Crimp
Tongue Thickness
0.84mm
Voltage Rating (AC)
600V
Width
8.71mm
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
0.145inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 32959 Datasheet
Download the complete datasheet for TE Connectivity 32959 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

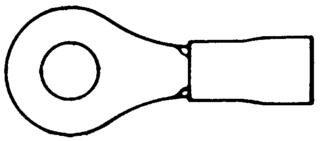

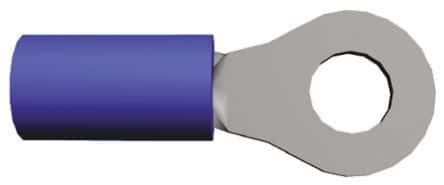

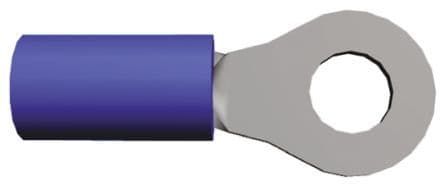

Product Images
