Female, non-insulated ring terminal for 10-12 AWG wire. Features copper body with tin plating and copper/silver contact material also with tin plating. Maximum operating temperature of 170°C. Straight orientation, free-hanging mount, and crimp termination. Stud diameter is 6.35mm (M6).
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 33458 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Package/Case | Metal |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 13.49mm |
| Finish | Tin |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Length | 1.004inch |
| Material | Copper |
| Max Operating Temperature | 170°C |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Stud Diameter | 6.35mm |
| Stud Size | M6 |
| Termination | Crimp |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Diameter | 3.3mm |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 33458 Datasheet
Download the complete datasheet for TE Connectivity 33458 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

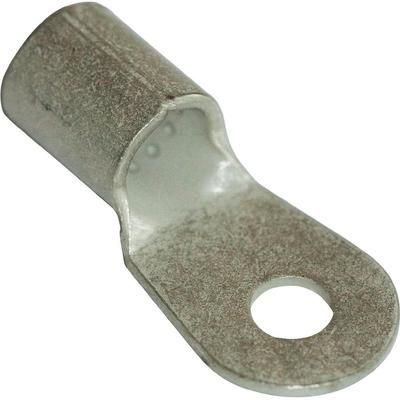

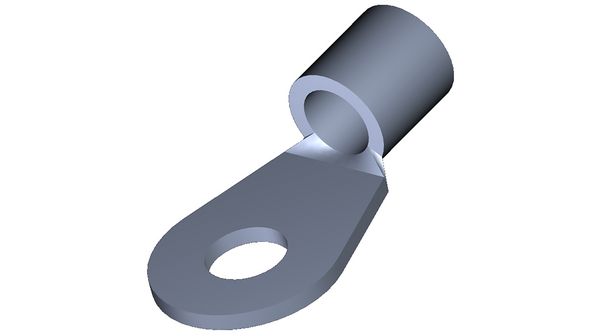

Product Images
