8-position shrouded header with a 1.27mm pitch, designed for surface mount (SMD/SMT) termination. Features a 1.5A contact current rating and 1A overall current rating, with a 100V operating supply voltage. Constructed with bronze contacts plated in tin, offering a rectangular male pin contact shape. The red nylon housing and insulation material contribute to a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. This board-to-board connector system is supplied in tape and reel packaging.
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 338728-8 technical specifications.
General
| Board Standoff | No (Without) |
| Color | Red |
| Connector System | Board-to-Board |
| Contact Current Rating | 1.5A |
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating | 1A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 4.6mm |
| Housing Color | Red |
| Insulation Color | Red |
| Insulation Material | Nylon |
| Length | 13.4mm |
| Mating Alignment | No (Without) |
| Mating Connector Lock | No (Without) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Supply Voltage | 100V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6mm |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 1.5mm |
| Series | Micro-MaTch |
| Shrouded | Yes (With) |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 338728-8 Datasheet
Download the complete datasheet for TE Connectivity 338728-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

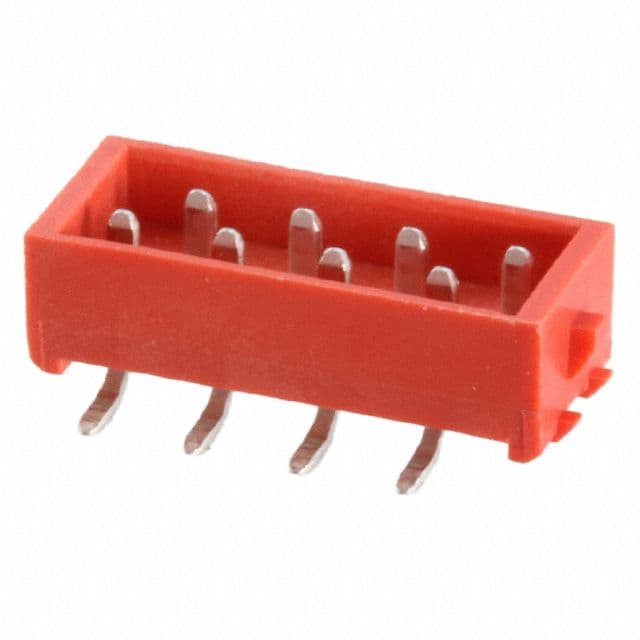

Product Images
