Ring tongue terminal, non-insulated, featuring a copper body with tin plating. Designed for 14-16 AWG wire, it offers a 2.1mm wire/cable diameter capacity and a 2.16mm inside diameter. The terminal has a 12.19mm length, 3.51mm diameter, and 6.35mm depth, with a 0.79mm thickness and 790um tongue thickness. Contact material is copper with silver plating, and the terminal is rated for a maximum operating temperature of 170°C. This loose piece terminal is RoHS compliant.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34120 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
Metal
Contact Material
Copper, Silver
Contact Plating
Tin
Depth
6.35mm
Diameter
3.51mm
ELV
Compliant
Finish
Tin
Gender
Female
Government Qualified
No
Heavy Duty
No
Inside Diameter
2.16mm
Insulated Wire Support
No
Insulation
Non-Insulated
Lead Free
Lead Free
Length
0.48inch
Material
Copper
Max Operating Temperature
170°C
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Solistrand
Stud Diameter
0.138inch
Stud Size
M3.5
Termination
Crimp
Thickness
0.79mm
Tongue Thickness
790um
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Diameter
2.1mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34120 Datasheet
Download the complete datasheet for TE Connectivity 34120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

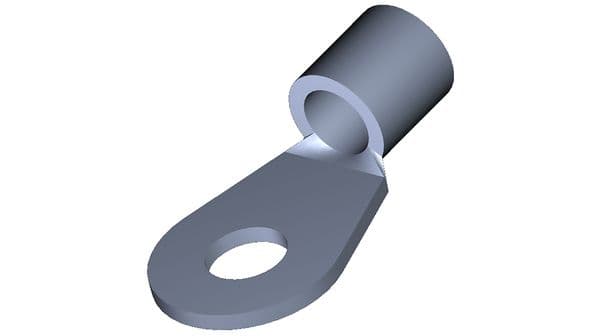

Product Images
