Ring tongue terminal for 16-22 AWG wire, featuring a copper body with tin plating and a red vinyl insulated housing. This female, straight-oriented terminal offers insulated wire support and a maximum voltage rating of 600V AC. Constructed from copper with silver contact material, it has a tin plated contact for reliable crimp termination. The terminal measures 20.55mm in length and 7.14mm in width, with a tongue thickness of 0.84mm. It is RoHS compliant and supplied in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34143 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 7.14mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.14inch |
| Insulation Material | Vinyl |
| Lead Free | Lead Free |
| Length | 20.55mm |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Stud Diameter | 0.119inch |
| Stud Size | M2.5 |
| Termination | Crimp |
| Thickness | 0.79mm |
| Tongue Thickness | 0.84mm |
| Voltage Rating (AC) | 600V |
| Width | 7.14mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Diameter | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34143 Datasheet
Download the complete datasheet for TE Connectivity 34143 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

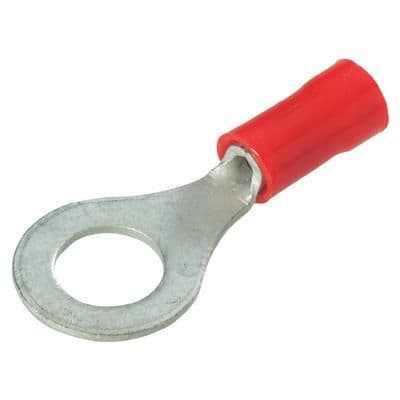

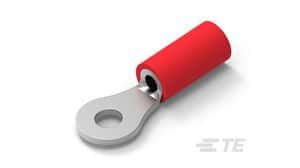

Product Images
